Rail Extrusion
Grade 6063 rail with the internal fastener channel.
Product Catalog · Edition 2026
Engineered for strength.
Engineered for strength.
Crafted for generations.
The complete Safe Fences range — ornamental steel and aluminum panels, gates, and every fitting in between. Materials, finishes, configurations and standard sizes, all in one place.
01The Company
About Safe Fences
Family owned and founded in 2004, Safe Fences has quickly risen to become one of the premier ornamental steel — and subsequently ornamental aluminum — manufacturers in Pune, India. We employ over 150 individuals across our manufacturing facilities in the industrial hub of Pune, and every inch of our product is manufactured right here on our own premises.
Our approach to business has remained the same throughout the years: innovative quality products that exceed industry standards for durability, paired with reliable, outstanding service. We treat every customer as part of our own family.
Our Values
- Quality First
- Built to exceed standards in durability and finish
- Innovation
- Modern solutions with strong design thinking
- Customer Commitment
- Every client is treated like family
- Integrity
- Honest, transparent and reliable in every step
- Excellence
- Consistent performance through skilled craftsmanship
Our Vision
To become a leading name in ornamental steel and aluminum solutions, recognized for strength, trust, and long-lasting excellence.
Our Mission
To manufacture high-quality, durable fencing with precision and innovation, exceeding expectations through reliable service and superior craftsmanship.
02Ornamental Steel

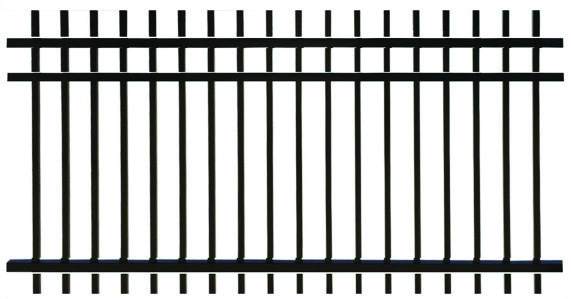

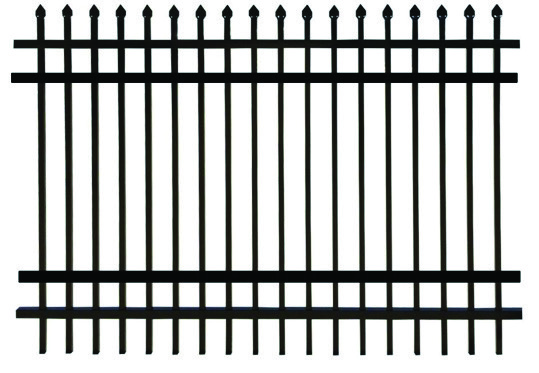

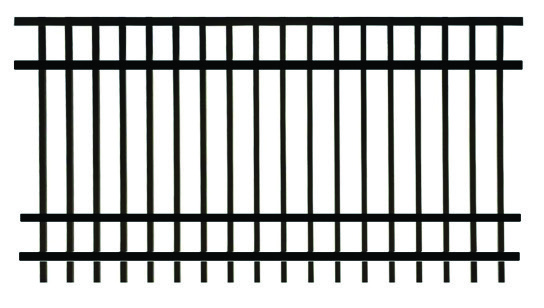

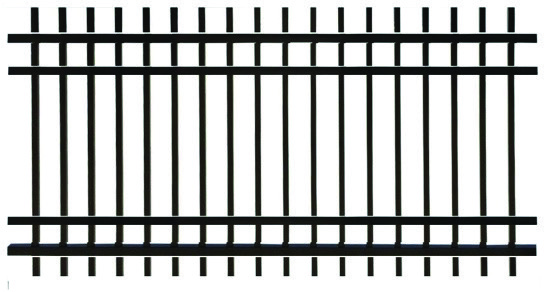

C-Channel fence panels & gates
Pickets pass through a formed C-channel rail. Ten standard configurations for residential and commercial applications.
Material Used
- Base
- Pre-galvanized coils for C-channel & square tubes
- C-Channel
- 1½" x 1½" x 1½" x 16 Gauge
- Pickets — Commercial
- ¾" x ¾" x 18 Gauge
- Pickets — Residential
- 5/8" x 5/8" x 18 Gauge
Finish
- Coating
- Powder coated, high gloss PP
- Warranty
- 10 years on finish and coating
Panel Sizes — Height x Width
4' x 8'5' x 8'6' x 8'7' x 8'8' x 8'
- Gates
- Swing gates in heights matching panels, standard widths 4' and 5'
03Ornamental Steel
Steel gate designs
Residential and commercial swing gates, arched or straight top, in heights matching the panel range.
04Ornamental Steel

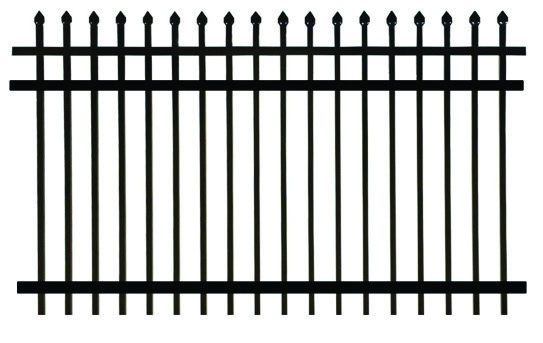

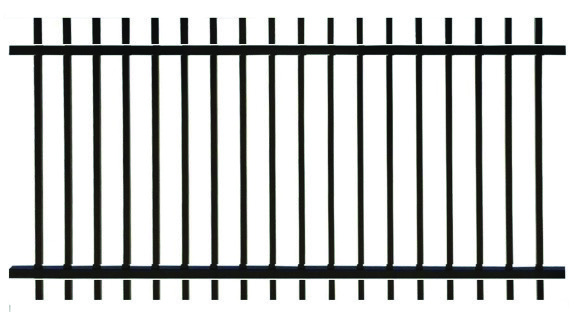

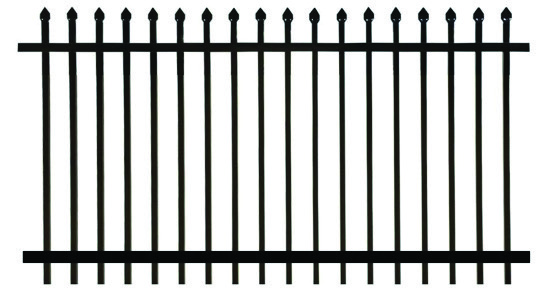

Face-welded panels & gates
Pickets welded to the face of the rail tube — a strong, flat profile in four standard configurations.
Material Used
- Base
- Pre-galvanized coils
- Rail Tubes
- 1½" x 1½" x 1½" x 16 Gauge
- Pickets — Commercial
- ¾" x ¾" x 18 Gauge
- Pickets — Residential
- 5/8" x 5/8" x 18 Gauge
Finish
- Coating
- Powder coated, high gloss PP
- Warranty
- 10 years on finish and coating
Panel Sizes — Height x Width
4' x 8'5' x 8'6' x 8'7' x 8'8' x 8'
- Gates
- Standard widths 4' and 5'
05Ornamental Steel

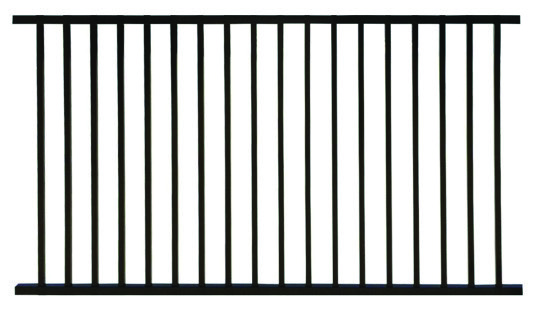

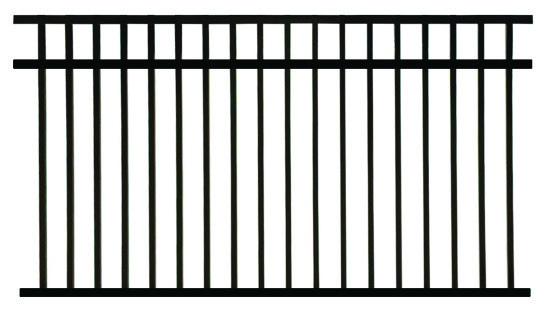

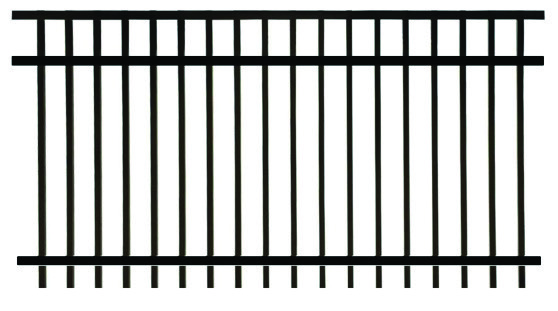

Tubular fences — center welded
Pickets welded within the rail tube: the most concealed and architectural of our three construction methods.
Tubular gate designs
Five layers between steel and weather
Every tube is protected by a full multi-stage coating process — not a single coat of paint.
- 1Outer architectural powder coatHigh-gloss top shield, UV and impact resistant
- 2Zinc-rich epoxy primerSacrificial corrosion barrier
- 3Phosphate coating sealerLocks adhesion between layers
- 4G60 galvanized layerZinc coating on the base substrate
- 545,000 PSI steel coreThe structural backbone
Material & Sizes
- Rail Tubes
- 1½" x 1½" x 1½" x 16 Gauge
- Panel Sizes
- 4', 5', 6', 7', 8' height x 8' width
06Aluminum

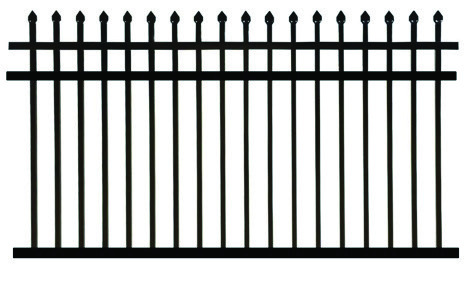

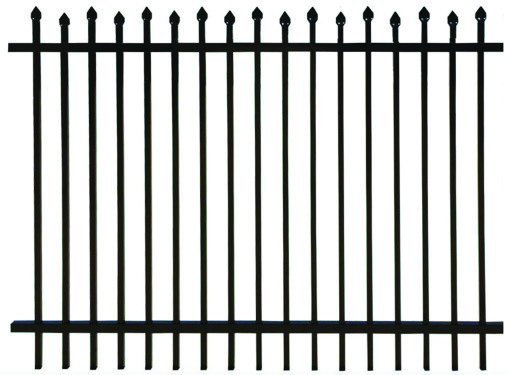

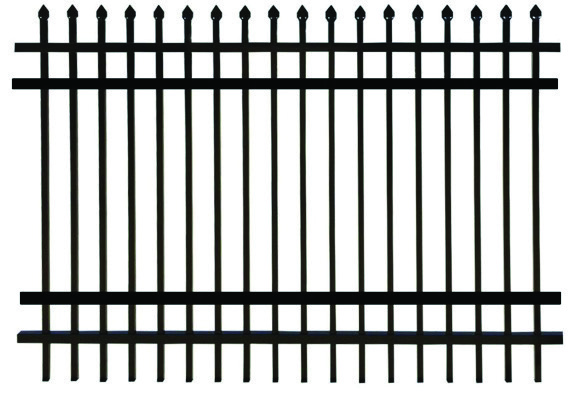

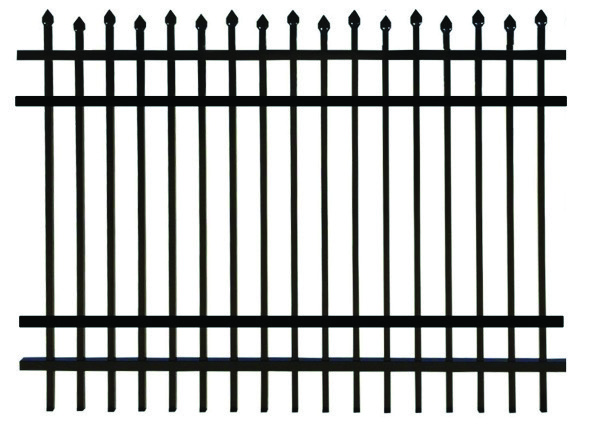

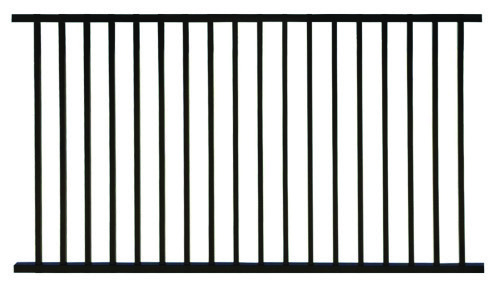

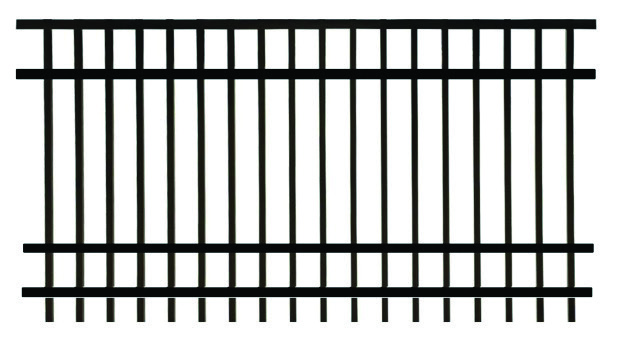

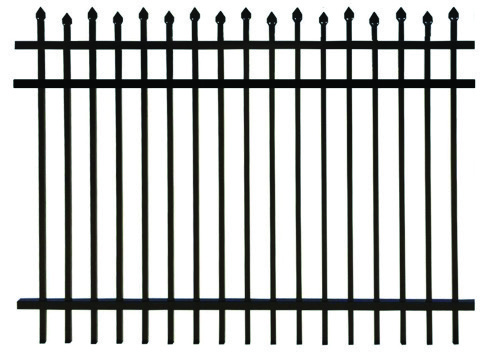

Aluminum fence panels — hidden screw design
Grade 6063 aluminum with a concealed-fastener system for a clean sight line. Eleven standard configurations.
The hidden-screw extrusion system
Rails and sliders are extruded with an internal channel so fasteners seat inside the profile — no visible screw heads along the fence line.
Slider Profile
Slider that locks the picket without exposed hardware.
Finished Rail
The same profile, powder coated in high-gloss black.
Material Used
- Grade
- Aluminum 6063 — rails, sliders & pickets
- Rail Tubes
- 1" x 1" x 1" x 16 Gauge
- Pickets
- 5/8" x 5/8" x 18 Gauge (residential)
Finish
- Coating
- Powder coated, high gloss PP
- Warranty
- 10 years on finish and coating
Panel Sizes — Height x Width
4' x 6'5' x 6'6' x 6'
- Gates
- Swing gates in heights matching panels, standard widths 4' and 5'
07Aluminum
Aluminum gate designs
Hidden-screw swing gates, arched or straight top, matched to the aluminum panel range.
08Hardware
Ornamental fence fittings
Hinges, caps, brackets, flanges and latches — supplied zinc plated or zinc plus black.
Barrel Hinges
Sizes 3", 5" and 7" with SS 304 heavy-duty ball.
Pressed Steel Caps
Tube sizes 1", 1½", 2", 2½", 3", 4" and 6".
Panel Mounting Brackets
Straights and biasables for rail sizes 1", 1½" and 2".

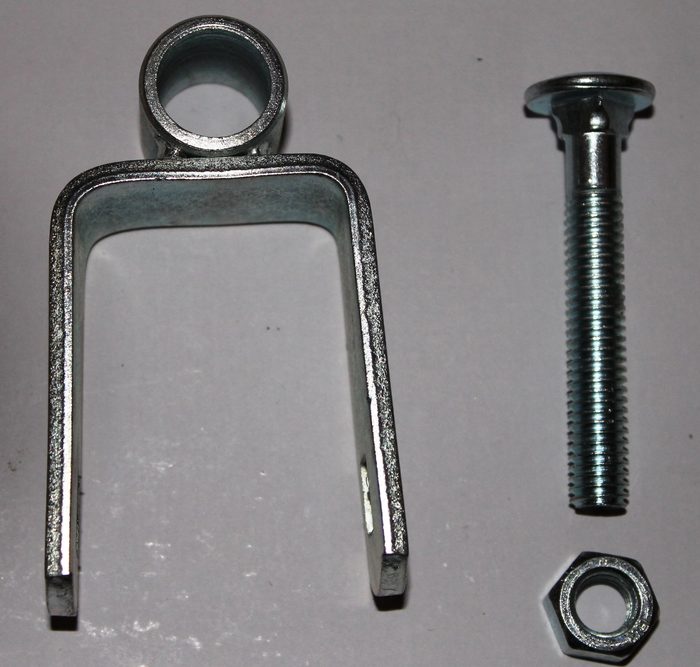

Adjustable Hinges
Male and female, for gate sizes 1", 1½", 2" and 2½".
Weld-On Butt Hinges
Sizes 2¼"x3½", 3"x3", 4"x4", 5"x5" and 6"x6".

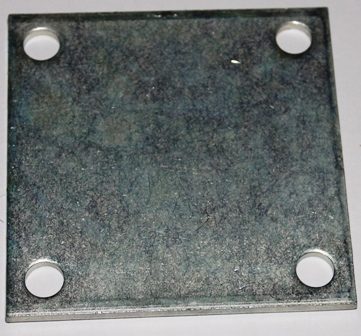

Floor Flanges
Raised and flat, in 3"x3", 4"x4" and 6"x6".
Hand Rail Brackets
Wall and post brackets for handrail assemblies.
Rubber Rollers
Rollers for sliding gate assemblies.
Decorative Scrolls
Ornamental scrollwork for gates and infill panels.
Gate Latches — Strikers and Receivers
1"1½"2"2½"
09Hardware
C-channel rail fittings
Wrap-around, end and line brackets, plus plastic caps and plugs to close every open section.

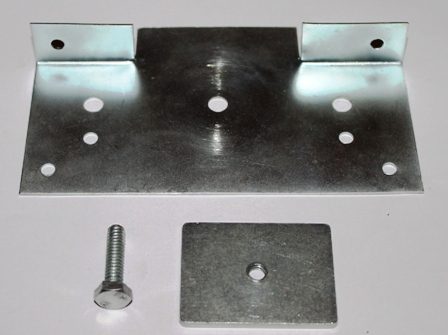

Wrap-Around Brackets
Available in 2" and 2½".
End Brackets
Available in 1" and 1½".
Line Brackets
Available in 2" and 2½".
Plastic Caps and Plugs
5/8"½"¾"1"1½"2"2½"
10In Situ
Application
Residential frontages, pool enclosures, property perimeters and commercial boundaries.

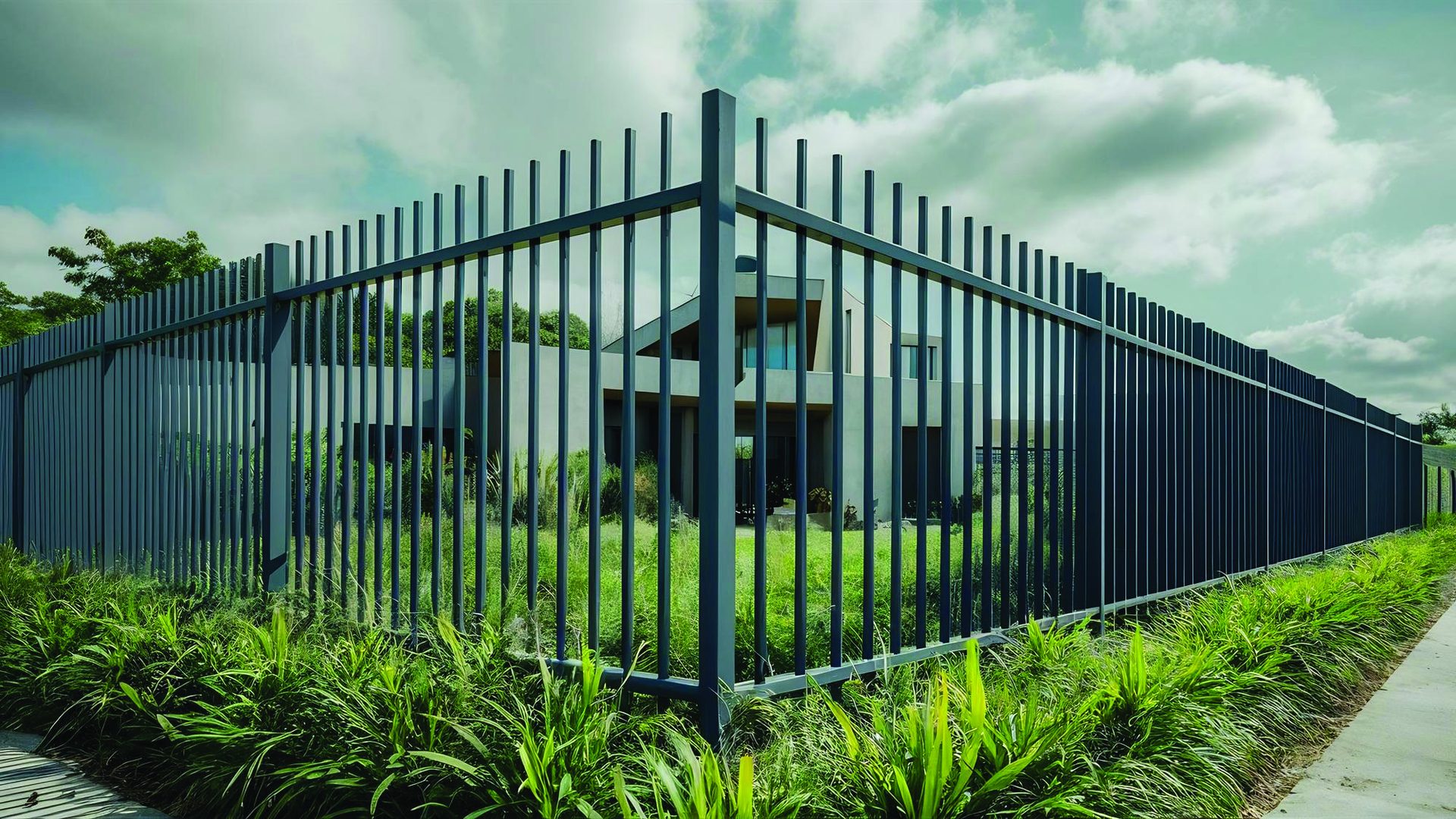

Estate Entrance
Arched ornamental gates with decorative scrollwork.

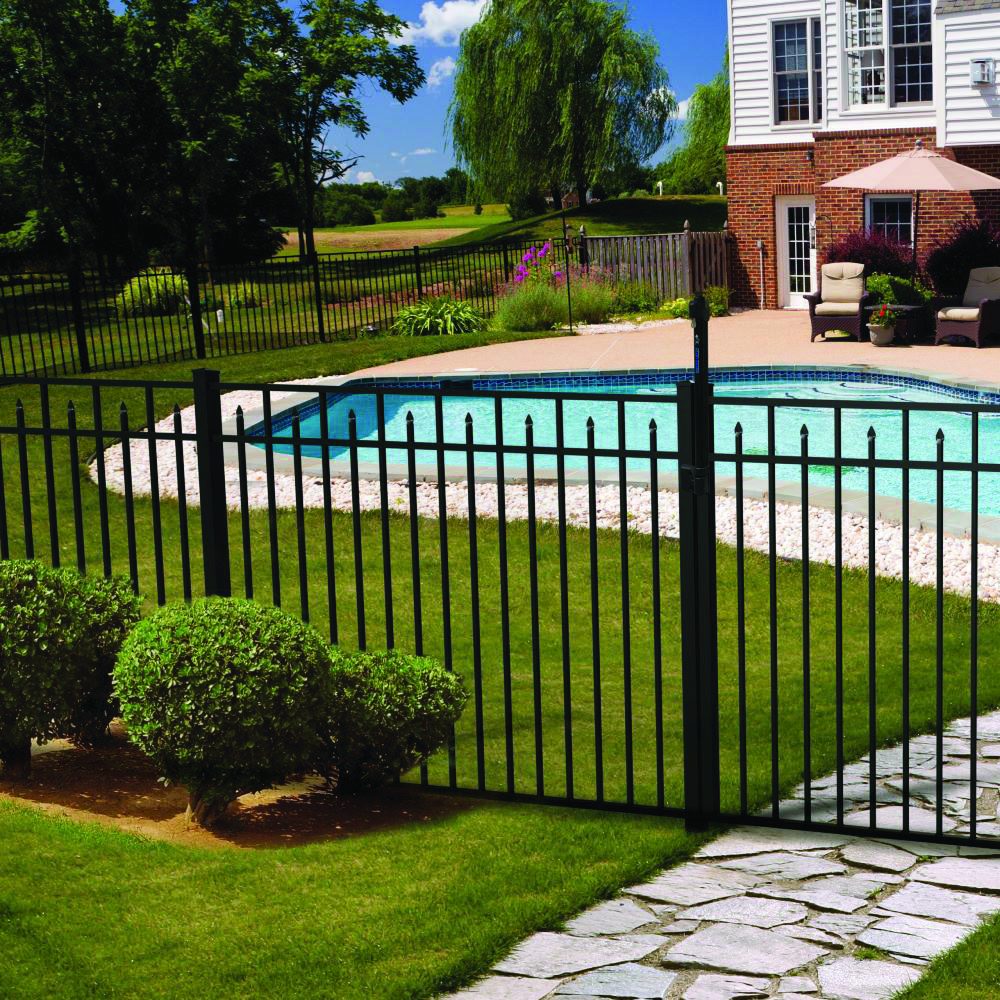

Pool Enclosure
Spear-top residential aluminum with matching gate.
Perimeter Security
Tall tubular steel along a property boundary.
Modern Residence
Flush-top aluminum framing a contemporary home.
Commercial Boundary
Spear-top steel over a long, level run.
Garden & Courtyard
Lower-height panels for internal boundaries.
Precision Aluminum · Powerful Steel
Perfect fencing, quoted to your specification.
Send us your fence line, gate count and preferred configuration. We'll come back with pricing and lead times within one business day.
